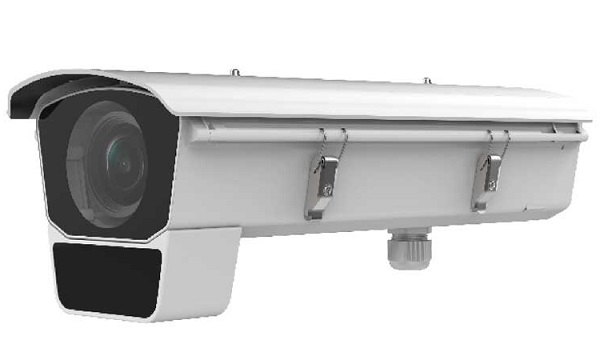

Camera IP nhận diện biển số xe HIKVISION iDS-2CD7026G0/EP-IHSY (3.8-16 mm)

Camera IP nhận diện biển số xe HIKVISION iDS-2CD7026G0/EP-IHSY (3.8-16 mm) - Cảm biến hình ảnh: 1/1.8 inch Progressive Scan CMOS. - Độ phân giải camera ip: 2.0 Megapixel. - Ống kính zoom: 3.8 to 16 mm. - Chuẩn nén hình ảnh: H.265+/H.265/H.264+/H.264. - Tầm quan sát hồng ngoại: 80 mét. - Hình ảnh màu sắc ở môi trường ánh sáng yếu với công nghệ DarkFighter. - Chống ngược sáng thực 140dB. - Hỗ trợ BLC, HLC, 3D DNR, Defog, EIS, chống cong ảnh. - Tích hợp khe cắm thẻ nhớ micro SD/SDHC/SDXC, lên đến 256 GB. - Tính năng thông minh (Sử dụng thuật toán Deep Learning): Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) Filtering out mistaken alarm caused by target types such as leaf, light, animal, and flag, etc. - Nhận diện biển số xe, thuộc tính xe (loại xe, màu xe,…). - Chống ăn mòn NEMA 4X (NEMA 250-2018). - Tiêu chuẩn chống bụi nước: IP66 (IEC 60529-2013). - Tiêu chuẩn chống va đập: IK10 (IEC 62262:2002). Đặc tính kỹ thuật Model iDS-2CD7026G0/EP-IHSY Camera Image Sensor 1/1.8 inch Progressive Scan CMOS Min. Illumination Color: 0.002 Lux @ (F1.4, AGC ON); B/W: 0.002 Lux @ (F1.4, AGC ON) Shutter Speed 1/3 s to 1/100,000 s Slow Shutter Yes Day & Night IR Cut Filter WDR 140 dB IR Range Up to 80 m Smart Supplement Light Yes Lens Lens Type & FOV 3.8 to 16 mm, horizontal FOV: 109.1° to 29.6°, vertical FOV: 61.3° to 16.8°, diagonal FOV: 125.1° to 33.9° Aperture F1.4 Blue Glass Module Blue glass module to reduce ghost phenomenon ABF Yes P-Iris Yes Video Max. Resolution 1920 × 1080 Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG Video Bit Rate 32 Kbps to 16 Mbps Scalable Video Coding (SVC) H.265 and H.264 support Region of Interest (ROI) 4 fixed regions for each stream Audio Environment Noise Filtering Yes Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3 Audio Type Mono sound Network Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS Simultaneous Live View Up to 20 channels API ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP User/Host Up to 32 users, 3 levels: administrator, operator and user Image Smart IR The IR LEDs on camera should support Smart IR function to automatically adjust power to avoid image overexposure Day/Night Switch Day, Night, Auto, Schedule, Triggered by Alarm In, Triggered by Video Target Cropping Yes Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24bit bmp format Image Enhancement BLC, HLC, 3D DNR, Defog, EIS, Distortion Correction Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser Image Parameters Switch Yes Interface Alarm 2 inputs, 2 outputs (max. 24 VDC, 1 A) Audio 1 input (line in), 1 output (line out), 3.5 mm connector, 2 channels RS-485 1 RS-485(half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) Video Output 1 Vp-p Composite Output(75 Ω/CVBS) (For debugging only) Communication 1 RJ45 100M/1000M self-adaptive Ethernet port Heater Yes Hardware Reset Yes Smart Feature-Set Basic Event Motion detection, video tampering alarm, vibration detection, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) Smart Event Line crossing detection, up to 4 lines configurable Intrusion detection, up to 4 regions configurable Region entrance detection, up to 4 regions configurable Region exiting detection, up to 4 regions configurable Unattended baggage detection, up to 4 regions configurable Object removal detection, up to 4 regions configurable Scene change detection, audio exception detection, defocus detection Counting Yes Premier Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) Filtering out mistaken alarm caused by target types such as leaf, light, animal, and flag, etc Road Traffic and Vehicle Detection Blocklist and allowlist: up to 10000 records Captures vehicle that has no license plate Support license plate recognition of motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, etc. (City Street mode is recommended.) General General Function Anti- flicker, 5 streams and up to 5 custom streams, EPTZ, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter Power Supply 24 VDC ± 20%, three-core terminal block, reverse polarity protection 24 VAC ± 20%, three-core terminal block, reverse polarity protection PoE: 802.3bt, Type3, Class 5 Startup and Operating Conditions -40 °C to 65 °C (-40 °F to 149 °F). Humidity 95% or less (non-condensing) Material Aluminum alloy body, PP sun shield, PC front panel Protection IP66 Dimensions 465.3 × 169.2 ×164.7 mm Weight 3800 g - Bảo hành: 24 tháng. Giá: Vui lòng gọi (Đã bao gồm VAT)
