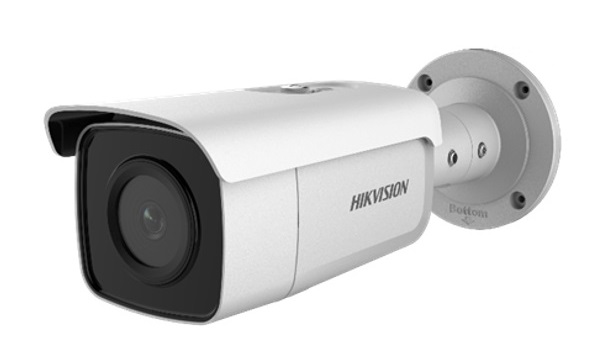

Camera IP hồng ngoại 4.0 Meagapixel HIKVISION DS-2CD2T46G2-2I

Camera IP hồng ngoại 4.0 Meagapixel HIKVISION DS-2CD2T46G2-2I - Dòng easy IP 4.0 – chống báo động giả. - Cảm biến hình ảnh: 1/2.7 inch progressive scan CMOS. - Chuẩn nén hình ảnh: H.265+. - Độ nhạy sáng: Color: 0.003 Lux @ (F1.4, AGC ON). - Độ phân giải: 4.0 Megapixel. - Ống kính cố định: 2.8 mm/4 mm/ 6 mm. - Tầm quan sát hồng ngoại: 60 mét. - Chức năng chống ngược sáng thực 120dB WDR. - Hỗ trợ BLC, HLC, 3D DNR. - Hỗ trợ khe cắm thẻ nhớ lên đến 256 GB. - Chống báo động giả bằng cách phân biệt được người, xe với các yếu tố gây báo động giả khác (như vật nuôi, lá cây,...). - Tiêu chuẩn chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời). - Hỗ trợ cấp nguồn qua mạng PoE (Power over Ethernet). - Nguồn điện: 12VDC & PoE (802.3at, class 3). Đặc tính kỹ thuật Model DS-2CD2T46G2-2I Camera Image Sensor 1/2.7 inch Progressive Scan CMOS Min. Illumination Color: 0.003 Lux @ (F1.4, AGC ON) Day & Night ICR Cut Shutter Speed 1/3 s to 1/100,000 s Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° Slow Shutter Yes Wide Dynamic Range 120 dB Lens Lens Type & FOV 2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 123° 4 mm, horizontal FOV 83°, vertical FOV 45°, diagonal FOV 98° 6 mm, horizontal FOV 53°, vertical FOV 28°, diagonal FOV 62° Aperture F1.4 Lens Mount M12 Aperture Type Fixed Illuminator IR Range 2I: Up to 60 m Wavelength 850 nm Smart Supplement Light Yes Supplement Light IR Video Max. Resolution 2592 × 1944 Main Stream 50Hz: 20fps (2592 × 1944) 25fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 20fps (2944 × 1656) 30fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720) Sub Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) Third Stream 50Hz: 25fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240) Video Compression Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 Video Bit Rate 32 Kbps to 8 Mbps H.264 Type Baseline Profile/Main Profile/High Profile H.265 Type Main Profile H.264+ Main Stream supports H.265+ Main Stream supports Bit Rate Control CBR/VBR Scalable Video Coding (SVC) Yes Region of Interest (ROI) 1 fixed regions for each stream Network Simultaneous Live View Up to 6 channels API ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS Smooth Streaming Yes User/Host Up to 32 users. 3 user levels: administrator, operator and user Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF Network Storage microSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported Client iVMS-4200, Hik-Connect, Hik-Central Web Browser Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Image Day/Night Switch Day, Night, Auto, Schedule Image Enhancement BLC, HLC, 3D DNR Image Parameters Switch Yes Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser Interface On-board Storage Built-in micro SD slot, up to 256 GB Hardware Reset Yes Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port Intelligent (Traditional Algorithm) Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), scene change detection Intelligent (Deep Learning Algorithm) Face Capture Yes Premier Protection Line crossing detection, intrusion detection, region entrance detection, region exiting detection General Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup and Operating Conditions 30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Power Supply 12 VDC ± 25%, reverse polarity protection PoE: 802.3af, class 3 Power Consumption and Current 2I: 12 VDC, 0.63 A, max. 7.5 W PoE: (802.3af, 36 V to 57 V), 0.25 A to 0.16 A, max. 9 W Protection Ingression protection: IP67 (IEC 60529-2013) Software Reset Yes Power Interface Ø 5.5 mm coaxial power plug Material Metal except for sunshield Camera Dimension Ø 105 × 289.5 mm Package Dimension 386 × 156 × 155 mm Camera Weight 1090 g - Bảo hành: 24 tháng. Giá: 2.544.000 VND (Đã bao gồm VAT)
