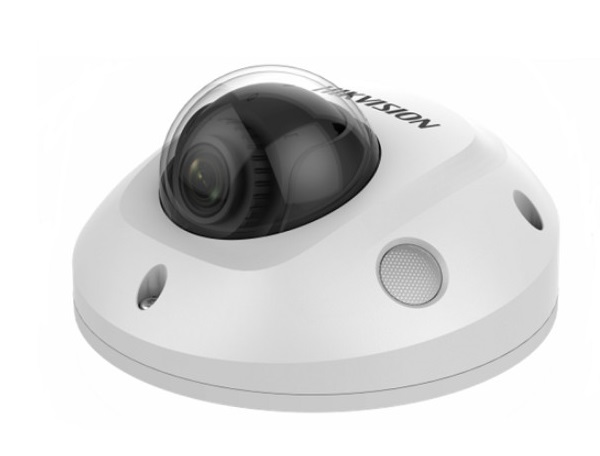

Camera IP Dome hồng ngoại không dây 2.0 Megapixel HIKVISION DS-2CD2523G0-IWS

Camera IP Dome hồng ngoại không dây 2.0 Megapixel HIKVISION DS-2CD2523G0-IWS - Cảm biến hình ảnh: 1/2.7inch Progressive Scan CMOS. - Độ phân giải camera ip: 2.0 Megapixel. - Chuẩn nén H.265+/H.265/H.264+/H.264/MJPEG. - Ống kính: 2.8 mm (tùy chọn 4mm, 6mm). - Độ nhạy sáng Màu: 0.01 lux @(F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux với hồng ngoại. - Chống ngược sáng WDR: 120dB. - Ghi hình: 1920×1080; 25fps/30fps. - Tầm quan sát hồng ngoại: 10 mét. - Chức năng giảm nhiễu số 3D DNR. - Hỗ trợ khe cắm thẻ nhớ SD/SDHC/SDXC lên đến 128GB. - Hỗ trợ dịch vụ Hik-Connect. - Hỗ trợ cổng Audio/Alarm. - Hỗ trợ kết nối Wifi. - Dễ dàng giám sát qua điện thoại di động, iPad, iPhone… - Nguồn điện: 12VDC & PoE. - Kích thước: Φ110 × 56.4 mm. - Trọng lượng: 400g. Đặc tính kỹ thuật Model DS-2CD2523G0-IWS Camera Image Sensor 1/2.7 inch Progressive Scan CMOS Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR Shutter Speed 1/3 s to 1/100,000 s Slow Shutter Yes Day & Night IR Cut Filter Digital Noise Reduction 3D DNR WDR 120dB 3-Axis Adjustment Pan: -30° to +30°, tilt: 0° to 75°, rotate: 0° to 360° Lens Focal length 2.8/4/6 mm Aperture F2.0 FOV 2.8 mm: Horizontal field of view: 114°, Vertical field of view: 62°, Diagonal field of view: 135° 4 mm: Horizontal field of view: 86°, Vertical field of view: 46°, Diagonal field of view: 102° 6 mm: Horizontal field of view: 54°, Vertical field of view: 30°, Diagonal field of view: 62° Lens Mount M12 IR IR Range Up to 10 m Wavelength 850 nm Compression Standard Video Compression Main stream: H.265/H.264 Sub stream: H.265/H.264 /MJPEG Third stream: H.265/H.264 H.264 Type Main Profile/High Profile H.264+ Yes H.265 Type Main Profile H.265+ Yes Video Bit Rate 32 Kbps to 16 Mbps Audio Compression G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) Smart Feature-set Behavior Analysis Line crossing detection, intrusion detection Face Detection Yes Region of Interest Support 1 fixed region for main stream and sub-stream separately Image Max. Resolution 1920 × 1080 Main Stream 50Hz:25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) Sub Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) Third Stream 50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240) Image Settings Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser Image Enhancement BLC/3D DNR Day/Night Switch Auto/Schedule/Day/Night/Triggered by Alarm In Network Network Storage Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, illegal login Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, QoS, IPv6 General Function One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter API ONVIF (PROFILE S, PROFILE G), ISAPI Simultaneous Live View Up to 6 channels User/Host Up to 32 users 3 levels: Administrator, Operator and User Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500 Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+ Interface Audio 2 Inputs: line in (3.5 mm) or mic in (built-in microphone), 1 Output: line out (3.5 mm), mono sound Alarm 1 Input: Alarm in (3.5mm) 1 Output: Alarm out (3.5mm) Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port On-board storage Built-in MicroSD/SDHC/SDXC slot, up to 128G SVC Support H.264 and H.265 encoding Wi-Fi Wireless Standards IEEE 802.11b/g/n Frequency Range 2.412 GHz to 2.4835 GHz Channel Bandwidth 20M/40M Protocols 802.11b: DQPSK, DBPSK, CCK 802.11g/n: OFDM /64-QAM,16-QAM, QPSK, BPSK Security WPA, WPA2 Transfer Rates 11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps Wireless Range 50 m Audio Environment Noise Filtering Yes Audio Sampling Rate 16 kHz, 32kHz, 44.1kHz, 48kHz General Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing) Power Supply 12 VDC ± 25%, PoE (802.3af, class 3) Power Consumption and Current 12 VDC, 0.7 A, max. 8.5W, Φ 5.5mm coaxial plug power PoE (802.3af, 36V to 57V), 0.3 A to 0.1 A, max. 10W Protection Level IK08, IP66 Material Front cover: plastic, Bottom base: metal Dimensions Φ110 × 56.4 mm Weight Camera: Approx. 400 g. - Bảo hành: 24 tháng. Giá: 2.460.000 VND (Đã bao gồm VAT)
