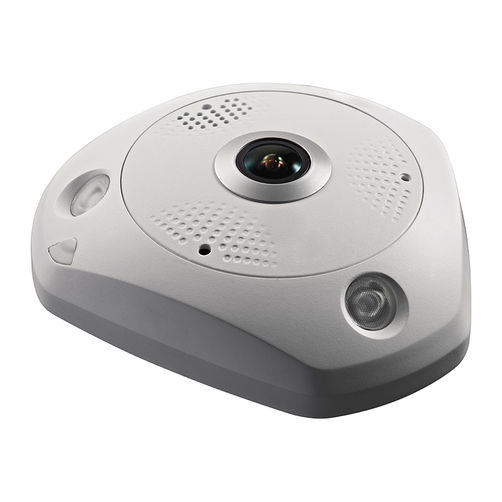

Camera IP toàn cảnh 360º hồng ngoại 12 Megapixel HDPARAGON HDS-792FI-360P

Image Sensor

1/1.7 inch Progressive Scan CMOS

Min. Illumination

0.01 Lux @ (F1.2, AGC ON), 0.04 Lux @ (F2.4, AGC ON), 0 Lux with IR

Shutter Speed

1/25(1/30)s ~ 1/100,000s

Lens

1.98mm @F2.4, angle of view: 360º

Lens Mount

M12

Day & Night

ICR

Video Compression

H.264 /MJPEG

H.264 Type

Baseline Profile / Main Profile / High Profile

Video Bit Rate

32 Kbps – 16 Mbps

Audio Compression(-Opt)

G.711/G.726/MP2L2

Audio Bit Rate

64Kbps (G.711) / 16Kbps (G.726) / 64Kbps (MP2L2)

Max. Resolution

4000 x 3072

Live Mode

Mode1: 1 x Fisheye or 4 x PTZ

Mode2: 1 x Fisheye (main stream) + 1 x Fisheye (sub stream) + 3 x PTZ

Mode3: 1 x Panorama (main stream) + 1 x Panorama (sub stream)

Frame Rate

Mode1: 50Hz: 1 x fisheye (4000 x 3072, 20fps; 3072 x 3072, 2560 x 2560 , 25fps) or 4 x PTZ (1600 x 1200, 12fps)

60Hz: 1xfisheye (4000 x 3072, 20fps; 3072 x 3072,2560x2560 , 24fps ) or 4 x PTZ (1600 x 1200, 15fps)

Mode2: 50Hz: 1 x Fisheye (2048 x 2048, 1280 x 1280, 12fps) + 1 x Fisheye (720 x 720, 12fps) +3 x PTZ (1600 x 1200, 12fps) 60Hz: 1 x Fisheye (1280 x 1280, 15fps) + 1 x Fisheye (720 x 720, 15fps) +3 x PTZ (1600 x 1200, 15fps)

Mode3: 50Hz:1 x Panorama (3072 x 2304, 3072 x 1152, 12fps) + 1 x Panorama (704 x 576, 12fps)

60Hz:1 x Panorama (3072 x 2304, 3072 x 1152, 15fps) + 1 x Panorama (704 x 576, 15fps)

Digital Noise Reduction

3D DNR

Image Setting

Saturation, Brightness, Contrast, Hue, Sharpness, AGC, White Balance

Wide Dynamic Range

Digital WDR

Day/Night Switch

Auto/Schedule/Alarm Trigger

ROI

Up to 4 fixed areas in each stream

Network Storage

NAS (Support NFS,SMB/CIFS)

Alarm Trigger

Line crossing detection, Intrusion detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI

Security

User Authentication, Watermark, IP address filtering, Anonymous access

Communication Interface

1 RJ45 10M/100M/1000M Ethernet interface; 1 RS485 interface (-S)

Audio Input

1 3.5mm audio interface, Mic in/Line in (-S);

1 built-in microphone by default, 24dB

Audio Output

1 3.5mm audio output interface (-S);

1 built-in speaker by default, support echo cancellation

Alarm Input (-S)

1

Alarm Output (-S)

1

On-board storage

Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

Power Supply

12 VDC ± 10% / PoE (802.3af)

Power Consumption

Max. 12W

IR Range

15 meters

Impact Protection

-V: IEC60068-2-75Eh, 20J; EN50102, up to IK10

Ingress Protection level

-V: IP66

Dimensions

164 x 152.8 x 43.8mm

Weight

1400g
