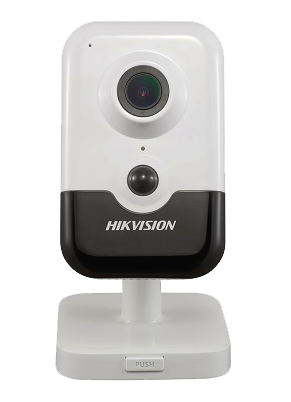

Camera Hikvision DS-2CD2443G0-IW

Image Sensor

1/3" Progressive Scan CMOS

Min. Illumination

Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 lux @(F1.6, AGC ON), 0 lux with IR

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

Day & Night

IR Cut Filter

Digital Noise Reduction

3D DNR

WDR

120dB

3-Axis Adjustment

Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

Focal length

2.8 mm

Aperture

F1.6

FOV

2.8 mm: horizontal FOV: 98°, vertical FOV: 55°, diagonal FOV: 114°

Lens Mount

M12

IR

IR Range

10 m

Wavelength

850nm

PIR

Angle

Horizontal: 90°, Vertical: 80°

PIR Range

10 m

Compression Standard

Video Compression

Main stream: H.265/H.264

Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264

H.264 Type

Main Profile/High Profile

H.264+

Yes

H.265 Type

Main Profile

H.265+

Yes

Video Bit Rate

256 Kbps to 16 Mbps

Audio Compression

G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM

Audio Bit Rate

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)

Smart Feature-set

Behavior Analysis

Line crossing detection, intrusion detection

Face Detection

Yes

Region of Interest

Support 1 fixed region for main stream and sub-stream separately


Max. Resolution

2688 × 1520

Main Stream

50Hz: 25fps (2688 × 1520, 2304 × 1296, 1920 × 1080)

60Hz: 30fps (2688 × 1520, 2304 × 1296, 1920 × 1080)

Sub-Stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Third Stream

50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)

60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser

Image Enhancement

BLC/3D DNR

Day/Night Switch

Day/Night/Auto/Schedule/Triggered by alarm in

Network

Network Storage

Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR

Alarm Trigger

Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, PIR, illegal login

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, QoS, IPv6

General Function

One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

API

ONVIF (PROFILE S, PROFILE G), ISAPI

Simultaneous Live View

Up to 6 channels

User/Host

Up to 32 users

3 levels: Administrator, Operator and User

Client

iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500

Web Browser

IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

Interface

Audio

1 built-in mic, 1 built-in speaker, mono sound

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

On-board storage

Built-in Micro SD/SDHC/SDXC slot, up to 128G

SVC

Support H.264 and H.265 encoding

Reset Button

Yes

Wi-Fi (-W)

Wireless Standards

IEEE 802.11b/g/n

Frequency Range

2.412 GHz to 2.4835 GHz

Channel Bandwidth

20M/40M

Protocols

802.11b: DQPSK, DBPSK, CCK

802.11g/n: OFDM/64-QAM, 16-QAM, QPSK, BPSK

Security

WPA, WPA2

Transfer Rates

11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps

Wireless Range

50 m

Audio

Environment Noise Filtering

Yes

Audio Sampling Rate

16 kHz

General

Operating Conditions

-10 °C to +40 °C (14 °F to +104 °F), Humidity 95% or less (non-condensing)

Power Supply

12 VDC ± 25%, PoE (802.3af, class 3)

Power Consumption and

Current

12 VDC, 0.5 A, max. 6 W, Φ 5.5 mm coaxial plug power

PoE (802.3af, 36V to 57V), 0.2 A to 0.1 A, max. 7W

Material

Plastic

Dimensions

102.8 mm × 65.2 mm × 32.6 mm (4.1" × 2.6" × 1.3")

Weight

Camera: Approx. 128 g (0.3 lb.)
