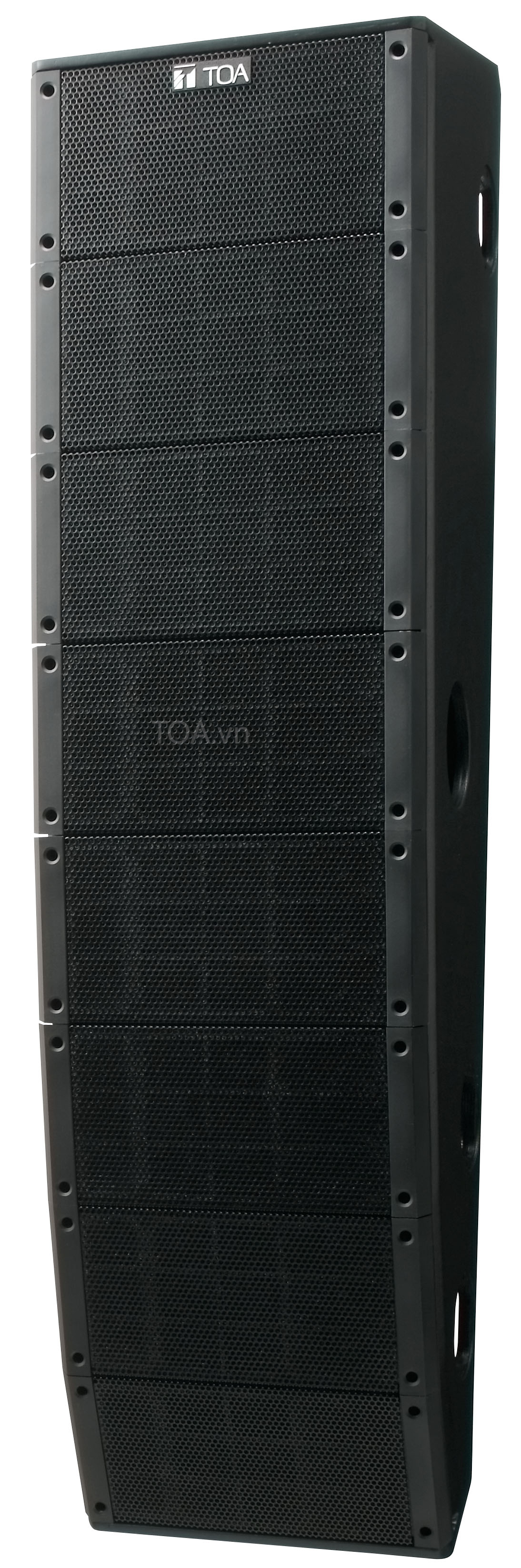

Hệ thống loa phân tán rộng TOA F-1300BTWP

• Enclosure: Bass-reflex type
• Rated Input: 30 W
• Rated Impedance: 100 V line: 330 Ω (30 W), 1 kΩ (10 W), 3.3 kΩ (3 W), 10 kΩ (1 W)70 V line: 170 Ω (30 W), 330 Ω (15 W), 1 kΩ (5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
• Sensitivity: 90 dB (1 W, 1 m) at installation in 1/2 free sound field
• Frequency Response: Hz - 20 kHz, -10 dB at installation in 1/2 free sound field
• Crossover Frequency:2 kHz
• Directivity Angle: Horizontal 110゜, Vertical: 100゜
• Speaker Component: Low frequency 13 cm (5") cone-type, High frequency: 25 mm (1") dome tweeter
• Input Terminal: Push-in terminal
• Water Protection:IPX4
• Operating Temperature: -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F)
• Finish:Enclosure HIPS, black Punched net Surface-treated steel plate, black, anticorrosive paintJoint bracket, wall bracket: Stainless steelSpeaker bracket Die-cast aluminum, black, paint
• Dimensions:  162 (W) × 250 (H) × 161 (D) mm (6.38" × 9.84" × 6.34")
• Weight:3.6 kg (7.94 lb) (including the supplied brackets)
• Accessory: Speaker bracket …1, Joint bracket …1, Wall bracket …1,Bracket fixing screw …1 set, Terminal cover …1, Terminal cover mounting screw …4

Option: Speaker mount bracket: YS-60B
